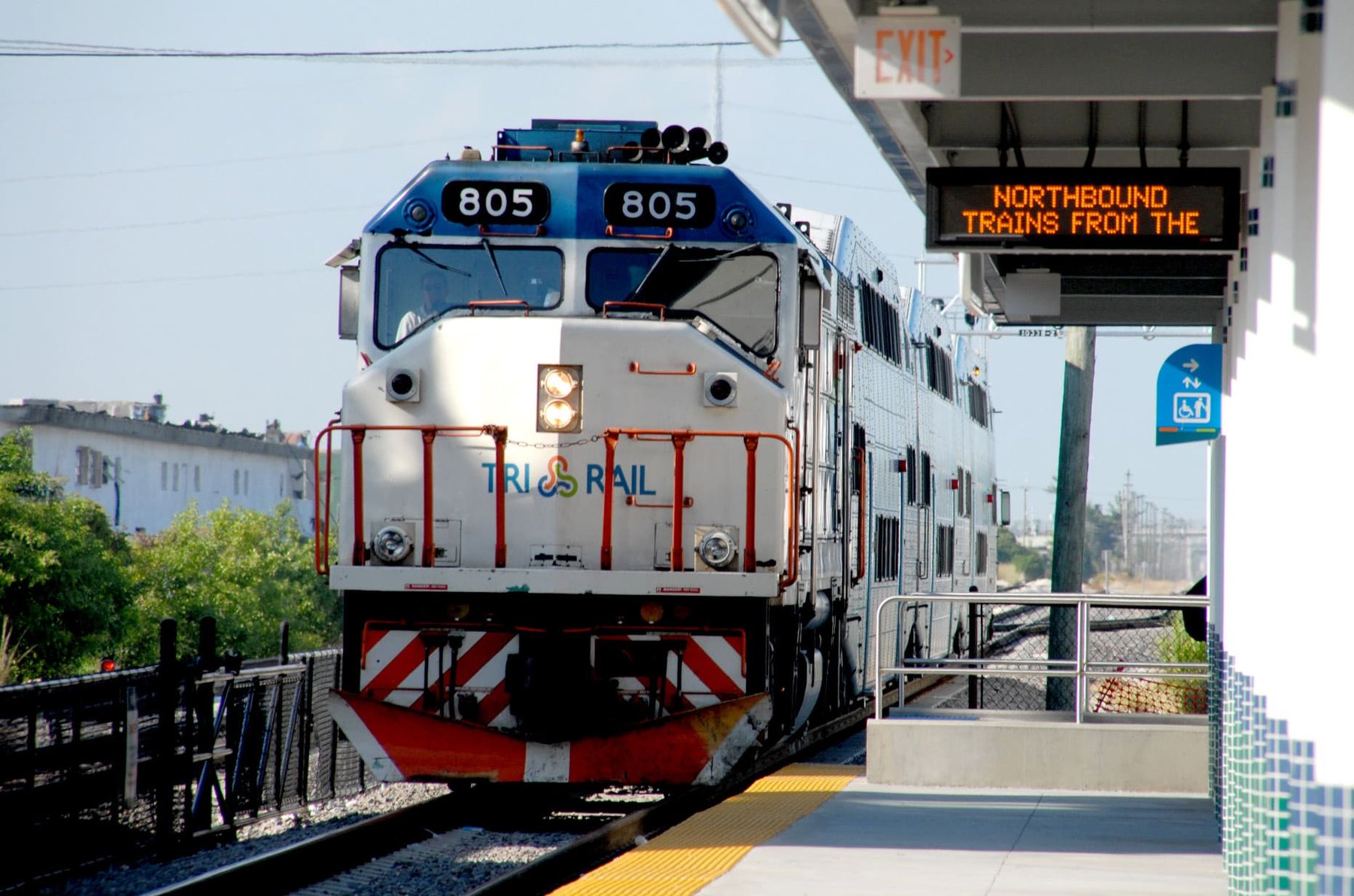

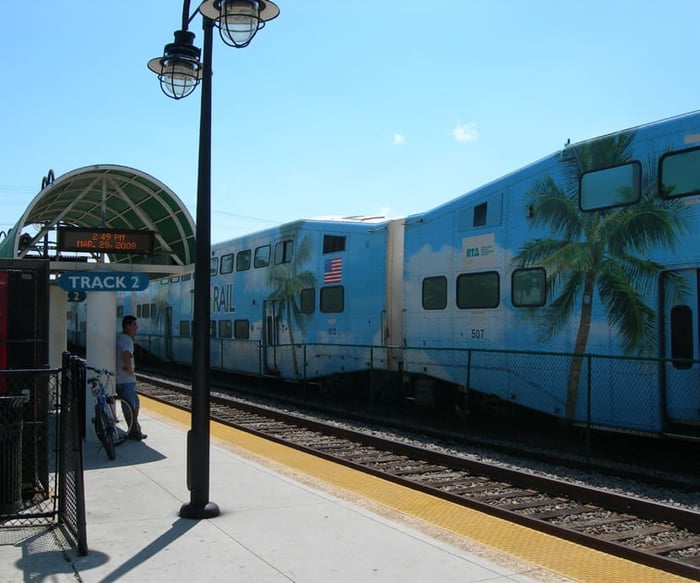

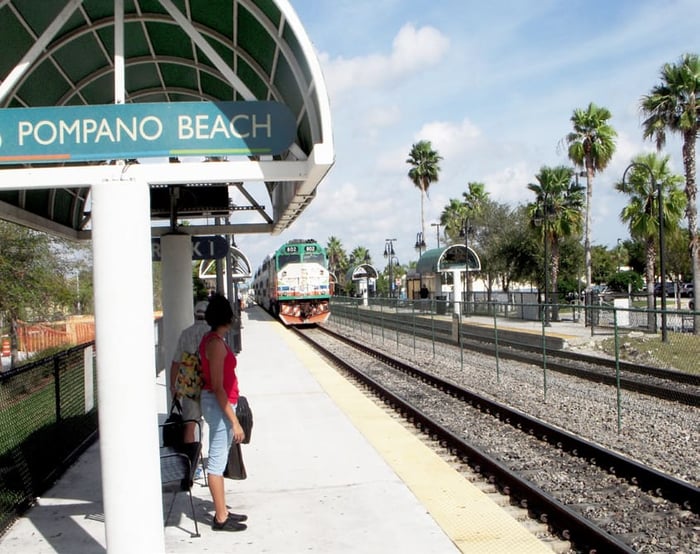

Pompano Beach Tri-Rail Station Expansion Survey Services

WGI was tasked with preparing a boundary and a topographic survey for the expansion of the existing Tri-Rail Station in Pompano Beach, Florida. The survey services included creating a digital terrain model of the existing roadway and the adjacent vacant tract for drainage design purposes. This section of railroad right-of-way also had platted “non-vehicular access lines” that were incorporated into the boundary survey and were required for the Broward County Board of Commissioners approval.

The final deliverables included sketches and legal descriptions, in both AutoCadd and MicroStation format, and certified drawings to the Tri-Rail Authority.
